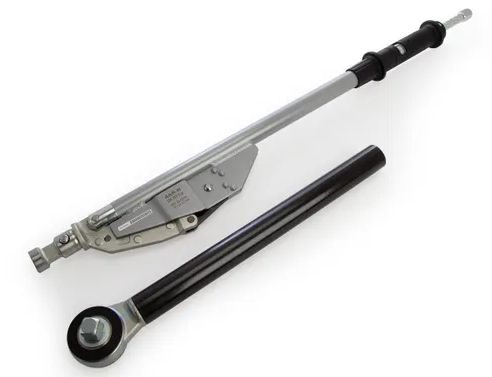

norbar 3/4 dr split torque wrench 200-800Nm (150-600 lb/ft)

Stock Code:
4AR-N
Price:
$2,080.00 excl. GST

Description

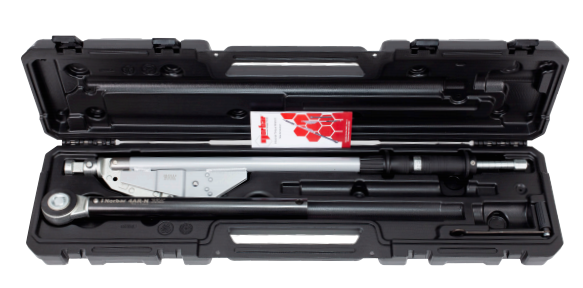

The heavy road fleet industry and other heavy duty operators love the ‘Industrial’ wrench for its robustness and clear torque signal. This new generation retains these qualities but improves upon the original’s scale for more accurate setting and can be split into two parts for easy and economic storage and shipping. Novel features of the split design and handle are protected by design registrations in the EU and applications for design registrations in the US and Canada. A unique profiled cam and reaction plate gives an unmistakable torque signal whilst the large break angle greatly reduces the possibility of over torquing. PRODUCT OVERVIEW • Case dimensions for each tool are 970 mm x 260 mm x 95 mm (length x width x height). • Can be split and packed in two parts for a smaller, easier to transport tool. . Comes with a 3/4" drive adapter • The clear torque signal that the break-back provides means that the wrench can be safely used in noisy environments where the ‘click’ signal of other wrenches may be missed. • These robustly constructed tools are accurate to ±4% even in arduous conditions and have further features which include: • Push-through ratchet for torqueing in two directions • Unique profiled cam and reaction plate - gives much clearer torque signal and the large break angle greatly reduces the possibility of over torqueing • Adjusting spanner so additional torque setting tool is not required • Easy to read scale protected from dust, dirt and spray • Designed for cost effective service • New handle - more comfortable and guides operator’s hand to correct position

Downloads
