ESC300 dual tractor tyre bead breaker - Esco

Stock Code:
10165
Price:
$3,580.00 excl. GST

Description

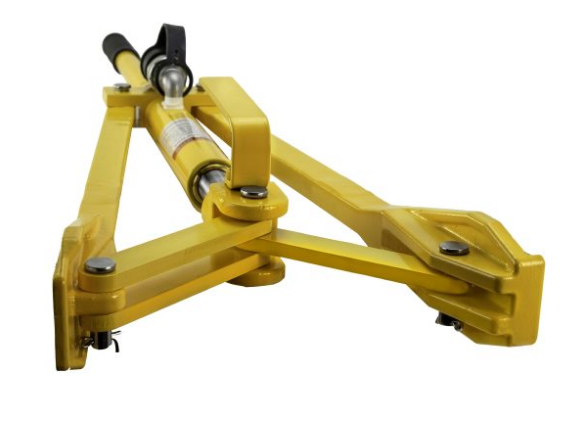

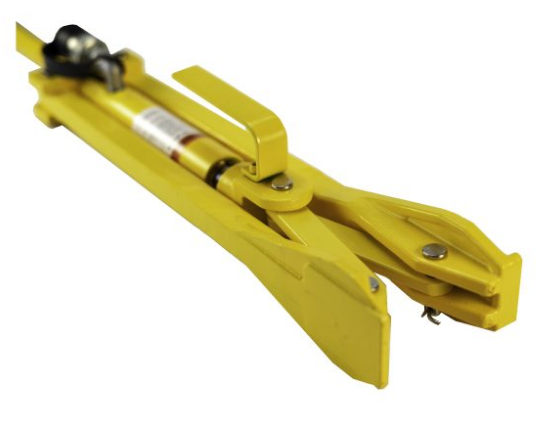

The ESC300 Dual Wheel Farm Tractor Tire Bead Breaker (model 10165) is designed to be used on dual agricultural tires to break inside bead on outside tires, eliminating the need to remove the tire off dual farm tractors. This unit is fitted with two scissor-style arms that push the tire bead away from the rim with 10,000 lbs. of hydraulic force with a minimum operating area of 4 ½ inches and can expand as wide as 12 inches. The ESC300 also comes equipped with an easy positioning handle for better ergonomic use, as well as a 90-degree hydraulic coupler, keeping the hydraulic hose out of the way while trying to service the tire/wheel.

To be used on dual agricultural tires to break inside bead on outside tires, eliminating the need to remove the tire off of dual farm tractors.

Lightweight and easy to use. Only 11.5kg.

Fitted with a removable handle for easier maneuvering and positioning of the bead breaker onto tire bead.

10,000 lbs. of pushing force.

Break inner bead with as little as 4 1/2 inches of operating space.

Capable of extending 12 inches wide.

Designed to be used with a hydraulic pump, hose, and other accessories.

3-Year Warranty
