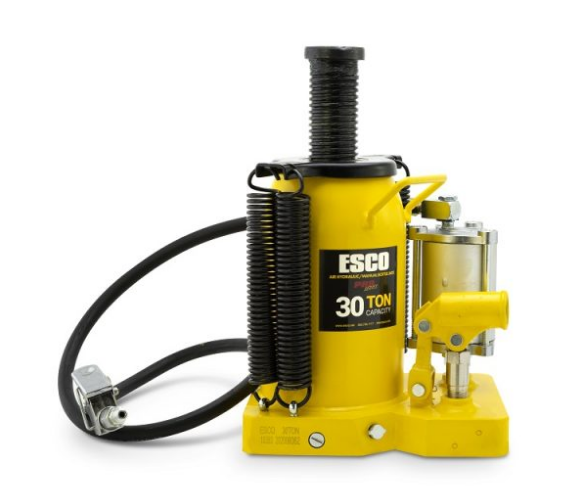

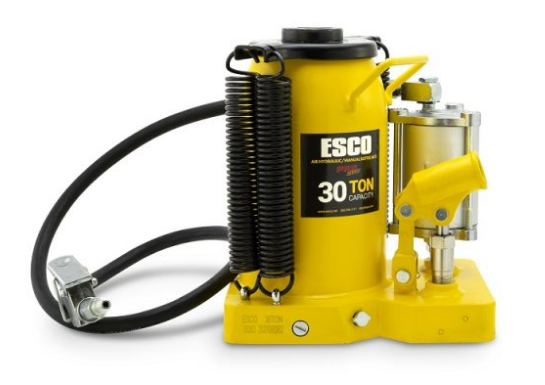

Esco 30 Ton Pro Series Air/Hyd Bottle Jack

Stock Code:
10383
Price:
$1,290.00 excl. GST

Description

Min height 275mm, Max height 500mm. Max load 60000lbs / 27250kg. Net weight 28.5kg,

The ESCO PRO SERIES AIR HYDRAULIC LIFTING EQUIPMENT is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a jack that will fit any service technician’s needs. Each jack is designed uniquely for specific applications including: Commercial Truck, Bus, Tractor & Farm Equipment, and much more.

  • Fully welded cylinder and frame provide superior strength and extended service life.
  • Extra thick jack base provides exceptional support and stability in severe conditions.
  • The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
  • Chrome-plated piston for extra rust and corrosion resistance.
  • Fitted with a safety valve to prevent overloading.
  • Double spring design for controlled and safe descent while releasing pressure from the cylinder.
  • Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.

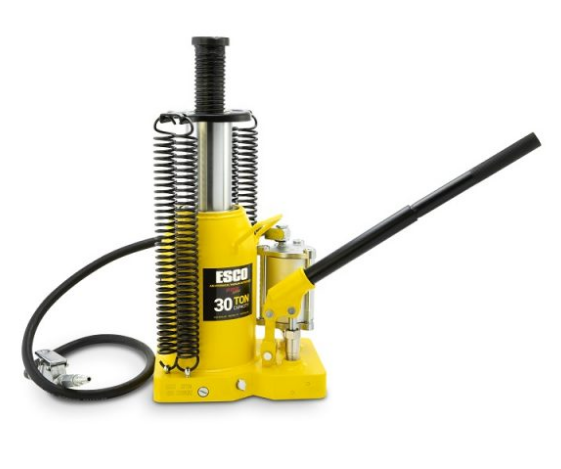

  • Design to be operated using air or manually with included two-piece lifting/lowering handle.
  • Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
  • Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
